YS4560 portable spectrophotometer is a high-end precise instrument for surface color measurement and management, which can be widely applied in all kinds of industries, such as plastics, metals, paint and coating, furniture, wood, ink, printing and packaging, pharmaceuticals, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry. In one word, YS4560 portable spectrophotometer can be perfectly applied in any place that requires color control or color management.
| Technical Parameter Items | YS4560 Portable Color Measurement Spectrophotometer |
| Product Category | Optical Electronic Color Measurement Instrument |
| Product Name | Portable Spectrophotometer, Color Meter |
| Application | For the measurement, analysis and management of colors of surfaces of those like plastics, metals, textiles, papers, wood, tiles, etc. |
| Optical Geometry | 45°/0 |
| Measuring Apertures | Two Apertures: ∅10mm/∅8mm + ∅6mm/∅4mm |

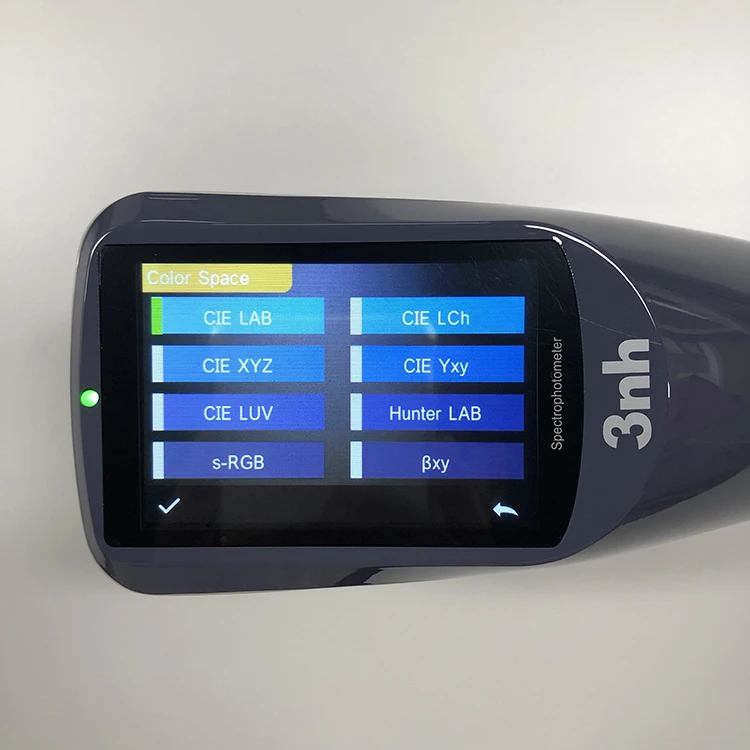

| Color Spaces | CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLab, s-RGB, βxy |
| Color Difference Formulas | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE(Hunter) |
| Repeatability Error | ΔE*Lab≤0.03 |
| Inter-instrument Error | ΔE*Lab≤0.15 |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, Quadrangle Chromaticity Tolerance. |
| Information Displayed | Spectrogram/Data, Chromaticity Diagram/Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset/Deviation Direction |
| Viewing Angle | 2° & 10° |
| Illuminating Lamps | Combined LED Lamps, UV Lamps |
| Lamps Life-span | 5 Years, more than 3 Million times of measurements. |
| Wavelength Range | 400nm - 700nm |
| Wavelength Pitch | 10nm |
| Semiband Width | 10nm |
| Reflectance Range | 0∼200% |
| Illuminants | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), UV. |
| UV Light Source | Yes. Include UV / Exclude UV. |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Spectroscope | Concave Grating |
| Location Method | Camera Location |
| Measurement Time | 1.5s |
| Data Storage Capacity | 1000 pcs of Standards, 30000 pcs of Samples. |
| Data Transmission Port | USB + Bluetooth 4.0 |
| PC Terminal Software | SQCX (for free) |

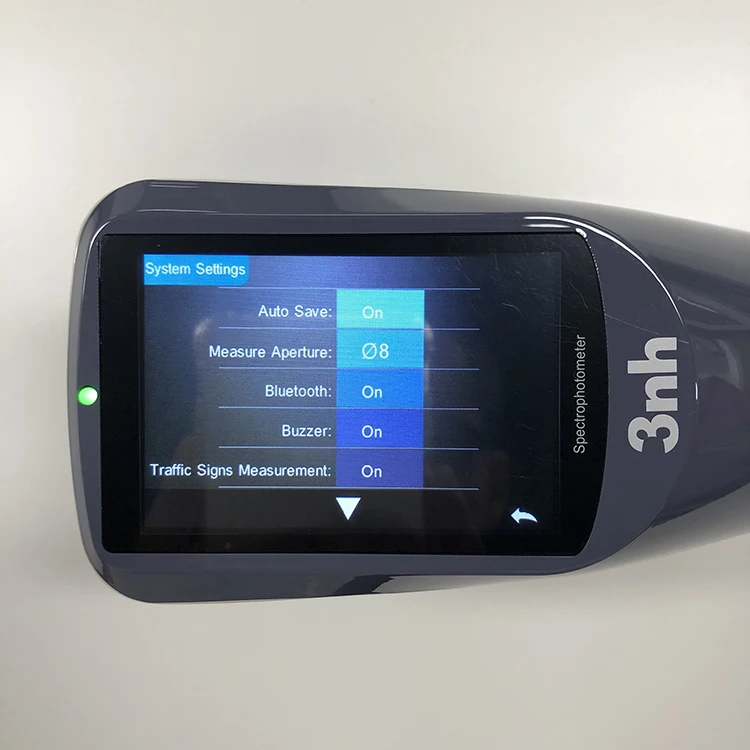

| Display Screen | 3.5 inches TFT Capacitance Screen-touch Display |
| Language Built-in | English, Chinese. (If need German, French, Spanish, Italian or Russia, please specify) |
| Power Supply | Built-in Rechargeable Battery, Power Adapter |
| Working Environment | Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation) |
| Storage Environment | Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation) |
| Standard Accessories | White and Black Calibration Board, Φ4mm, Φ8mm Aperture, Power Adapter, USB Cable, PC Software SQCX, User Guide. |
| Optional Accessories | Mini Thermal Printer, Powder Test Box, Universal Test Component |
| Weight | 600g |
| Dimension | 184*77*105mm |
3.1. High configuration of hardware: 3.5 inches TFT capacitance screen-touch display, showing more comprehensive colorimetric indexes in one screen, making your operation more convenient and freer, checking color spectrum reflectance rate data and graph very soon.
3.2. Dual Array 256 Image Element CMOS detector, making it more sensitive to colors.
3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durablility which makes the instrument more stable and durable.
3.4. UV light source, can measure fluorescent colors more accurately.
3.5. Pass/Fail test result indication, help you to decide whether the color of the sample meets the requirements very promptly.
3.6. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.
3.7. It supports the Quadrangle Chromaticity Tolerance.
3.8. Optics 45°/0 Geometry, the optical geometry which are widely adopted in color measuring instruments. Reflective 45°/0 Geometry is for measuring colors of non-transparent targets.
3.9. Two measuring apertures: ∅4mm and ∅8mm, perfectly measure the color of different kinds of targets from small one to big one.
3.10. All kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet all the requirements for color measurement and color analysis.
3.11. Include all kinds of light source types, can be applied to all the color measurement situations.
3.12. Two color measurement modes: Quality Mode and Average Mode, meet more color management situations.
3.13. Powerful data management functions, you can search and check records, rename and delete records, input standards.
3.14. Configured with a PC terminal software SQCX, more extended powerful functions for color data management can definitely facilitate your color management work.
3.15. USB and Bluetooth4.0, implement data transmission more convenient and prompt.
3.16. Built-in camera for aiming at the target to be measured precisely, very effcient in measuring small spot colors.
3.17. If configured with a Powder Test Box, it can measure the color of powders; if configured with a Universal Test Component, it can measure the color of powders, liquids and pastes.
Company Information
3nh & tilo is a very professional manufacturer from China for 22 years, and mainly produces colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc.
Our Certificates:
ISO9001; CE; FCC; ROHS; TUV; SCM.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
1. Can the YS4560 spectrophotometer be equivalent to any models of world famous brands?
Answer: Yes, our YS4560 is equivalent to the color measurement function of BYK 6801.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
